Electrical installations in campervans

 Some time ago we completed a project from the field of electrical installations in campervans.

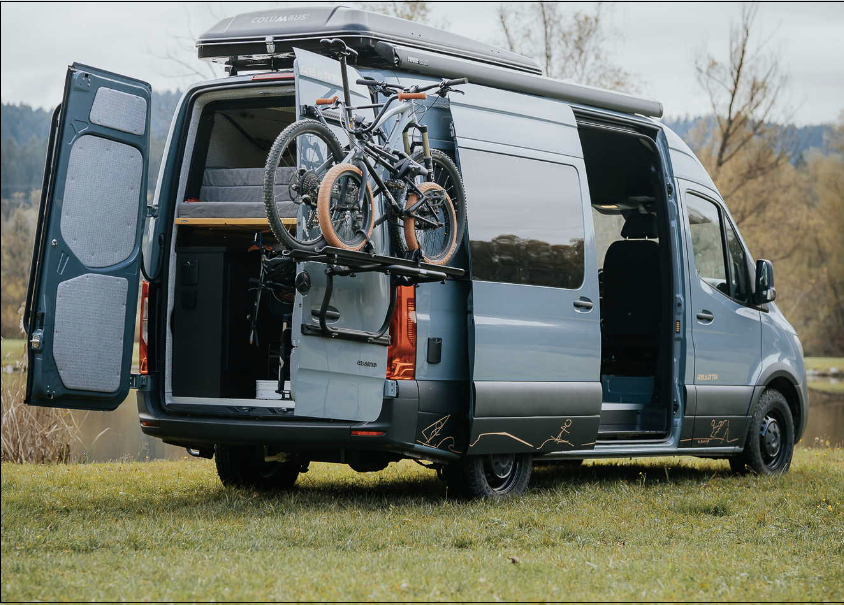

For our customer from the Koroška region in Slovenia, we have built in a electrical supply system into a 4- wheel drive Mercedes Benz Sprinter campervan. The electrical system includes everything a campervan needs to properly function off-grid. On a 100 x 170 cm board, all the electronics needed for a efficient supply of  electricity to all electrical loads and connectors, as well as efficient communication between all electronic devices, are mounted. This particular system gains electricity from one 12,8V lithium-ion battery, with a capacity of 200 Ah as well as solar panels. Solar panels produce electricity with the help of the sun, the network of electronics and with the help of an alternator. The batteries, on the other hand, need to be charged every now and then at a campsite or at any other location with the coresponding charging infrastructure. This energy supply system, that we developed and installed, is suitable for 12 or rather 230V loads and produces 3 kW power. The board itself is very practical since it contains all the required electronics and can be built into any campervan very fast and easy (RV, campervan, motorhome).

We have installed the following high- end Victron Energy components, which can also be found in our webshop:

• 1x Orion Tr 12/12 – 30A
• 1x Smart BMS 12/200
• 1x SmartSolar MPPT 75/15
• 1x Blue Smart IP65 12/10 s priklopnimi kabli
• 1x Cerbo GX
• 1x Smart Shunt 500A/50mV
• 1x LifePO4 baterija 12,8V/200Ah
• 1x GX Touch 50

The developed system, equiped with batteries, solar panels and high-end electronics, enables a completely independent off grid system for your campervan, while the electronics board with all the required electronics and simple installation, provides an almost instant and extremely elegant solution for a off-grid supply of electricity, while traveling to their favorite holiday spot.
